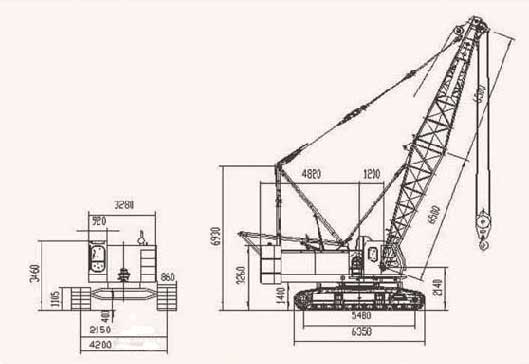

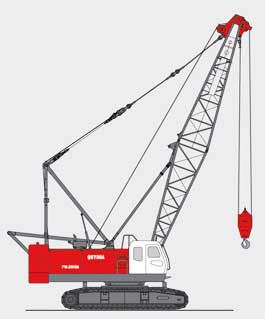

Hydraulic crawler crane , QUY80A

△The first 80 ton grade full hydraulic crawler crane QUY80A in China
△Load sensor hydraulic control handle adopts pilot control, good inching performance, making its operation more convenient and accurate
△Application of undercarriage hydraulic outrigger, makes it more easy to assemble/disassemble
△The easily damaged and consumable structural parts are self-made, .and special structure design, makes maintenance more convenient.
△Most part of whole crane adopts no-dust baked lacquer automatic assemble line painting.
△Fault diagnosis function, it will auto-alarm when the failure appears, in order to judge and maintain in time


QUY35 Hydraulic crawler crane data
ITEM UNIT DATA
Max rated lifting weight t 80
Boom length m 13-58
Max boom+Fixed jib length m 49+18
Boom luffing angle º 30-80
Max single line up speed for hoist m/min  *116/58 , 80/40
Max single line down speed for hoist m/min  *116/58 , 80/40
Max single line up speed for boom m/min 54
Max single line down speed for boom m/min 54
Rated Torque t•m 320
Max swing speed  r/min 3 / 1.4
Max travel speed r/min *1.3
Gradeability % 30
Rated Torque t•m 122.5
Engine power kW/r/min 209/2000
Balance weight t 24.5
The main lifting rate   10
Overall weight (main lifting hook,basic boom) t 83
Mean ground pressure MPa 0.0828
*the speed related to the load changing
